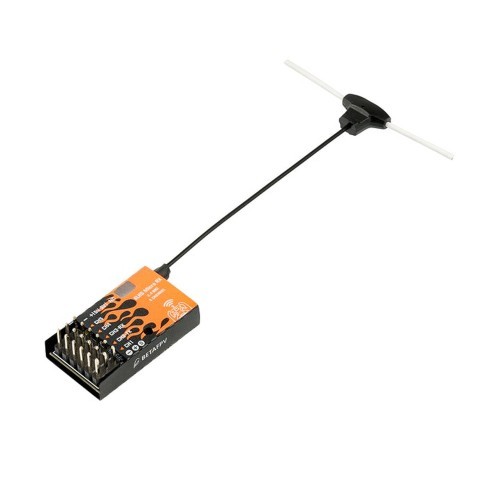

Elrs Micro 2.4g Receiver Expresslrs Micro Receiver Module Expresslrs Support 5 Ch Pwm Outputs Failsafe Function With Ipex Mhf T Antenna For Rc

Enter binding mode by plugging in and unplugging the Micro receiver three times; Make sure the LED is on double flashing, this indicates the Micro receiver is in bind mode;Make sure the RF TX module or radio transmitter also enters the binding mode, which sends out a binding pulse; When the LED light is solid, it indicates that the devices are successfully bound. There would be no need for re-bind on the later use as the devices would be connected automatically. Note: If you reflash the firmware of the Micro receiver with your own Binding Phrase, please make sure the RF TX module has the same Binding Phrase to perform an auto bind. Specification Item: BETAFPV ELRS Micro Receiver Weight: 4.5g (with antenna) Antenna: IPEX MHF + T antenna (recommend 80mm Dipole T Antenna) PWM channel: 5 channels Serial output protocol: PWM or CRSF Size: 19mm*32mm*9mm (without antenna) MCU: ESP8285/SX1280/SX1281 Telemetry power: 12.5dbm/17mW Frequency bands: 2.4GHz ISM Input voltage: 5V~9V DC @ + pad Default firmware version: ExpressLRS V3.0 Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc. Package1 * ELRS Micro Receiver 1 * BETAFPV 80mm T antenna 【PWM Output】BETAFPV ELRS Micro receiver is the first ELRS receiver with PWM output on BETAFPV. Supports 5 channels PWM outputs. It also supports flash CRSF output firmware, in this case CH2 corresponds to TX and CH3 corresponds to RX 【Application】ELRS micro receiver adapts for multiple types of models like fixed-wing, helicopters, RC cars, boats and etc. 【Failsafe Function】When the connection or signal is lost between the radio transmitter and receiver, the failsafe function will adjust all the channels to the failsafe values set by the users, maximum keep safety and prevent from flying away. 【Weight&Size】Weighing about 4.5g with an antenna and with the sizes of 19mm*32mm*9mm (without antenna). 【Plug &Play】With the plug-and-play connect ports, micro receiver is very easy to use and does not need to solder
