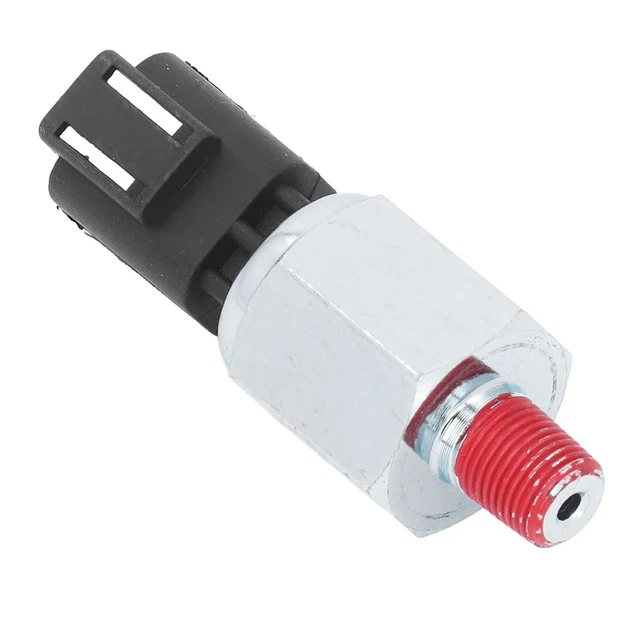

150Psi Pressure Transducer Sensor For Oil Fuel Diesel Gas Air Water

Measuring range: 150psi pressure Accuracy: ±1.0%FS Output signal: 0.5-4.5V, Supply voltage: 5-16VDC Operating temperature: -40～105℃ Compensation temperature: -20～80℃ Operating current: ≤3mA Temperature drift (zero&sensitivity): ≤±0.03%FS/℃ Long-term stability: ≤±0.2%FS/year Response time: ≤3ms Overload pressure: 150%FS Burst pressure: 300%FS Cycle life: 500,000 times Sensor core: Al2O3-96% ceramic sensor Pressure medium: Non-corrosive liquid or gas Pressure connection: 1/8”NPT, Electrical connection: Packard connection Housing material: 316 Stainless Steel Protection class: IP65 Explosion-proof class: ExiaⅡCT6 Weight: ≈0.080kg Electromagnetism Compatibility :EN50081-1; EN50082-2; IEC61000-4-3 【Application】The measuring range of pressure sensor transducer is 0-150psi. It's used to replace the OE pressor transmitter for fuel oil air water ect. Plug and Play. 【Specification】Supply voltage: 5-16V. Output: 0.5V - 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 150 psi outputs 4.5V. It's 1/8 -27 NPT thread. Operating temperature: -40～105℃. It's high temperature and corrosion resistant and cycle life is 500,000 times. IP65 Waterproof, work in various environments. 【Measuring Medium】Gas, liquid and other physical parameters of the pressure sender sensor can be converted to standard electrical signals. Response time: ≤3ms
